Digital Clamp Meter, AC Auto-Ranging TRMS, Low Impedance (LoZ) Mode


  • Clamp Meter with automatically ranging true mean squared (TRMS) technology for increased accuracy
  • Electronic Tester's clamp measures the AC current and its thermocouple probe measures the temperature
  • Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance, and tests diodes
  • Low-Impedance (LoZ) mode for identifying and eliminating ghost or stray voltage
  • CAT IV 600V, CAT III 1000V, Class 2, double insulation safety rating
  • Built to withstand a 6.6' (2 m) drop
  • Low-battery indicator and easily accessible battery compartment
  • Includes a carrying pouch, test leads, thermocouple with adaptor, and batteries
  • Meets requirements for use in basic and controlled electromagnetic environments such as residential, office and light-industrial locations
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Operating altitude to 6562' (2000 m)
coin-ip40cativ2m Product Icon
tough-meter Product Icon
ce Product Icon
etl-intertek Product Icon

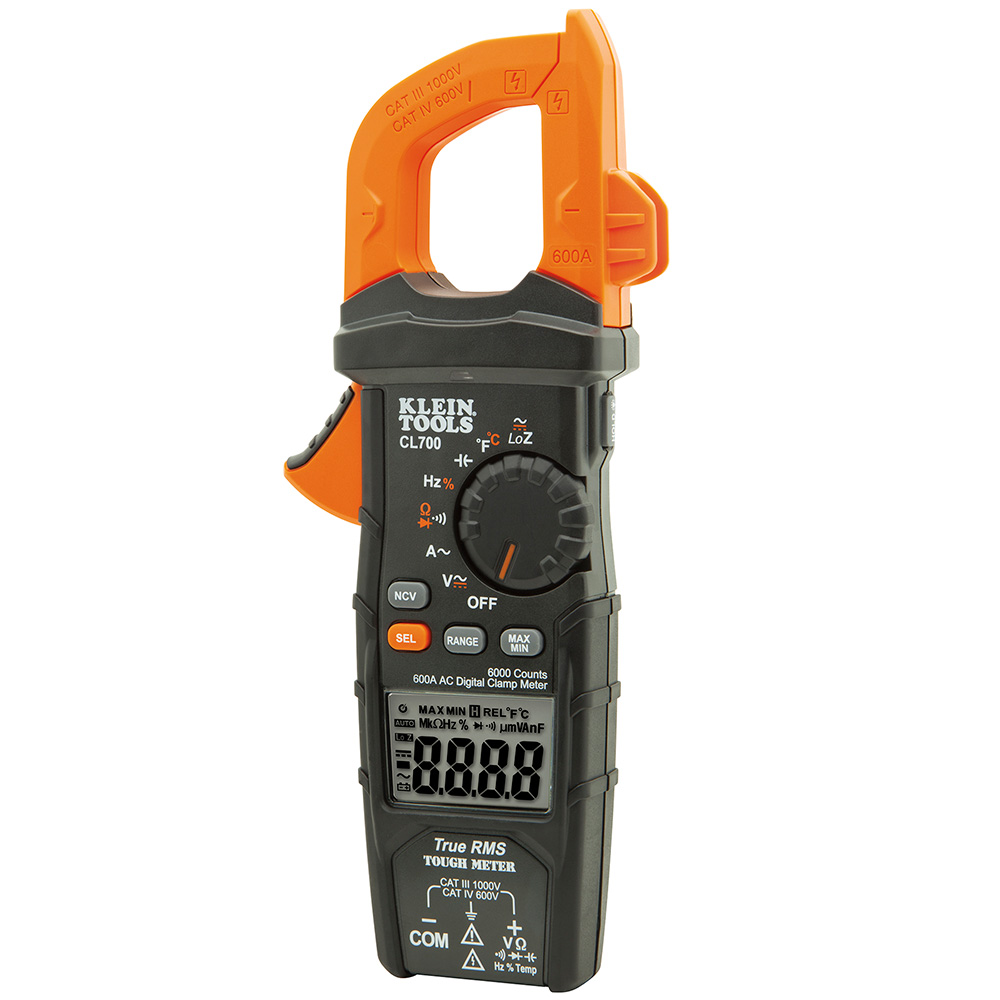

Klein Tools CL700 is an automatically ranging true root mean squared (TRMS) digital clamp meter that measures AC current via the clamp, as well as measuring AC/DC voltage, resistance, continuity, frequency and capacitance. It also tests diodes via test leads and measures the temperature via a thermocouple probe. It also features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages. Klein Tools’ Testing and Measurement product line was exclusively designed from the ground up - by electricians for electricians. Years of field research, combined with extensive input from electricians across America, have inspired the development of meters loaded with innovative, time-saving features.

Measures AC current
Special Features:
Features low-battery indicator
2 x AAA
Jaw Size:
1.38'' (3.5 cm)
Drop Protection:
6.6' (2 m)
6,000-count LCD
Clamp measures the AC current and the thermocouple probe measures the temperature. Test leads measure the AC/DC voltage, resistance, continuity, frequency and capacitance and test the diodes
1,000 V AC; 1,000 V DC
1 Hz-500 KHz
Ohms (Resistance):
Temperature Range:
-14 °F-1,000 °F (-26 °C-538 °C)
Ingress Protection:
CAT IV 600 V; CE certified
Clamp Meter; Carrying Case; Test Leads; Thermocouple with Adapter; Batteries
Overall Length:
9.09'' (23.1 cm)
Overall Height:
1.55'' (3.9 cm)
Overall Width:
3.81'' (9.7 cm)
11.8 oz (335 g)
Additional Information
  • Do not attempt to measure resistance or continuity on live circuits.
  • Read, understand and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before every use.
  • Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
  • Before each use verify meter operation by measuring a known voltage or current.
